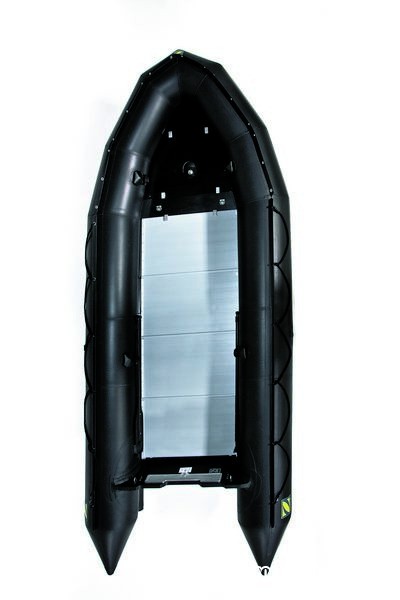

ZODIAC MARK IV

Large and voluminous but can still pack down into bags, This is a unique range of
larger inflatables that is designed primarily to carry heavy loads at planing speeds
due to its patented Futura hull shape. HD uses heavy materials and is reinforced
throughout making it suitable for extreme service.
Even at sizes up to 7 m, they can still be rolled up into a bag and thrown into the
back of a pickup truck or aircraft.

Specifications:

• Length 17' 5"
• Color : Black
• Beam 7' 0"
• Hull Weight 331 lbs
• Capacity: (12) Persons (3792 lbs)
• Maximum power allowed 80L hp (20" Shaft)
• Tube Diameter 22"
• Separate Air Chambers: (5 + 2 + 1)
• Fabric Type: Hypalon
• Factory Warranty: 5 years

Standard Features Include:

• Futura hull with inflatable keel and speed tubes
• Non skid Aluminum Floor
• Anodized Aluminum stringers
• Bow thrust board and bow Floor board varnished marine plywood
• Varnished reinforced plywood transom with bottom edge Stainless steel protection
• Ovoid reinforcement on tube transom attachments
• (4) Self bailers
• Inter communicating inflation valves
• Tear drop rub rail
• Rubbing strakes for beaching on keel and tubes
• Lateral carry handles
• Exterior lifeline on lacing cuff
• Reinforcing patches on interior tubes
• (2) Pilot handles
• Bow handle ( Nickeled brass)
• (2) Large tow rings fore and aft
• (6) Lateral D rings
• Foot bellows with hose
• Repair kit with pressure gauge
• Cylinder sheath
• Fuel tank tie down
• (2) Paddles
• Storage bag
