Weather Station
RainWise Multi Display For MK III

The Oracle Display for the MK III Wireless Weather Stations receives the weather instrument
data via radio signal from the MK III sensor assembly.

Every measured or calculated parameter has a display, including a wind direction
indicator. Some windows have options on what is displayed, the temperature window will
display either outside temperature, inside temperature, wind chill or dew point. In addition
to the real time data, the Weather Oracle records minimum and maximum values, with time
of occurrence, for wind speed, temperature, relative humidity, temperature humidity index,
dew point, and barometer. For rainfall, two different accumulations are recorded. Each rainfall
counter shows the time and date of the last counter reset.

Product Features

• The bright LED Weather Oracle display can be viewed from across a room, under any lighting
conditions.
• Multiple displays allow you to get the information you need at a glance.
• The wireless design allows the user to have as many displays and/  or computer interfaces as
desired. For example, in a condominium or  school with one sensor assembly you may be able to
provide weather information to all of the member units or classrooms.
• The Weather Oracle Display may be placed anywhere convenient to a wall outlet, such as on a
table or desk. Keyhole slots are provided for wall mounting.
• Clock or calendar is always visible.
• Display brightness can be adjusted at the touch of a button. Any individual display may be
turned off selectively if desired.
• The simple setup mode allows English or Metric units to be selected for each parameter.
The barometric pressure may be adjusted for the station elevation with a digital offset. A digital
temperature trim is also available. A diagnostic mode shows the weather station version numbers,
the sensor assembly battery voltage ( with 24 hour high and low values) , and a received signal indicator.

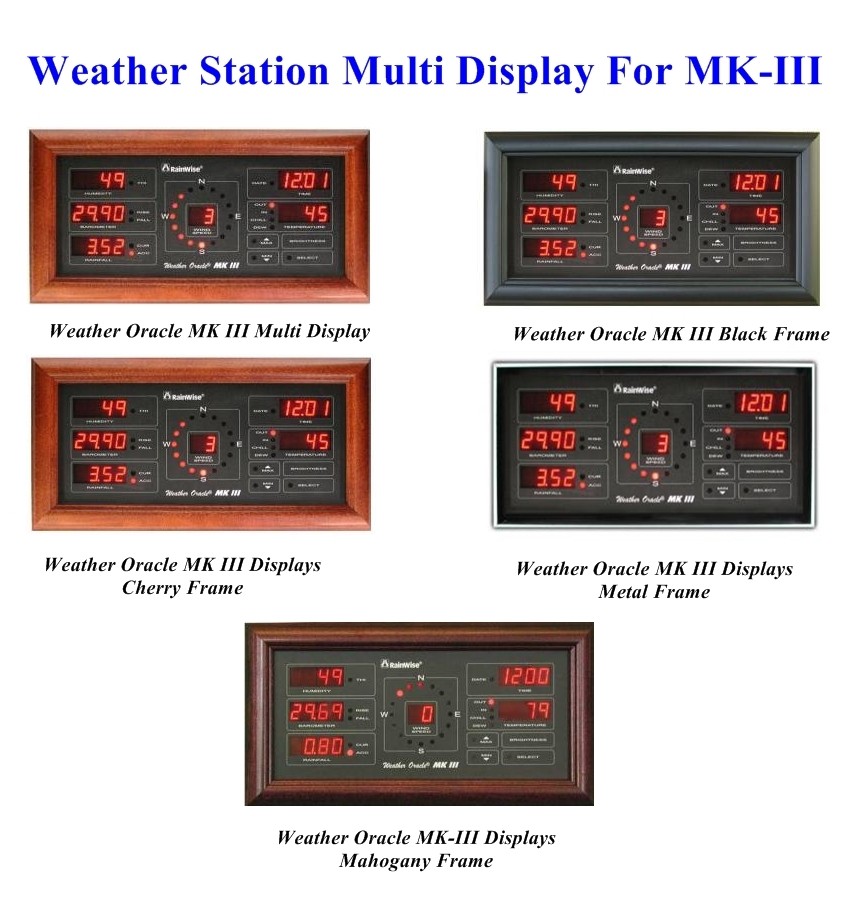

Type and Color Weather Station Multi Display For MK III

• Weather Oracle MK-III -Multi Display
• Weather Oracle MK-III -Cherry Frame
• Weather Oracle MK-III -Mahogany Frame
• Weather Oracle MK-III -Black Frame
• Weather Oracle MK-III -Metal Frame

Dimensions Display:

Wood: 13.0 " x 6.85 "
Metal: 12.0 " x 5.75 "
