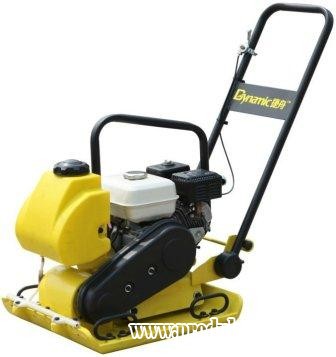

Dynamic plate compactor serious could be used in the narrow places of the wall,
roadside, foundation structure, also can be used for compaction asphalt and
concrete. Compared with the domestic market other similar products, Dynamic
plate compactor serious is more focused on the practicability and reliability.

• Solid, high strength steel base plate with curved edges provides top performance
• Robust design sealed belt cover for Clutch and Belt protection
• Anti vibration removable flip over handle for easy transportation
• Optional transport wheel for easy transportation around sites
• Optional water tank for asphalt use (HZR-60)
• Optional rubber mat for brick of pavement

Weight : 93 Kg
Dimension : L1100 x W500 x H950 mm
Plate size : L590 x W500 mm
Centrifugal force : 15 kn
Working diameter rpm : 5500 ( 92) hz
Speed : 20-23 m/ min
Engine : Air cooled, 4 cycle (Gasoline)
Type : Honda GX160 / Subaru EX17
Max. output kw : 4.0 ( 5.5) / 2.6 (3.7) hp
Max. speed : 3600 Rpm
Fuel tank : 3.6 Liter

For Model :

HZR-120
Weight : 115 Kg, Centrifugal force (kn) : 20, Engine Type : Honda, Subaru

HZR-90
Weight : 96 Kg, Centrifugal force (kn) : 20, Engine Type : Honda, Subaru

HZR-80
Weight : 93 Kg, Centrifugal force (kn) : 15, Engine Type : Honda, Subaru

HZR-60
Weight : 65 Kg, Centrifugal force (kn) : 10, Engine Type : Honda, Subaru, B& S
