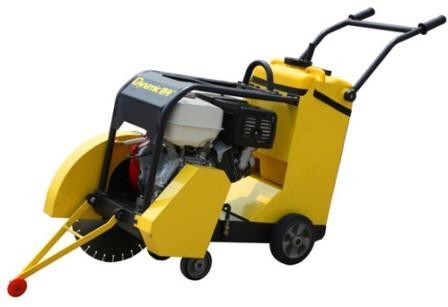

DYNAMIC Concrete Cutter

Type DFS-500

Feature:

This machine is used of cutting the expansion joint on concrete floor.
Meanwhile, it can cut and groove all standard manufactures of concrete,
marble and granite. It is a necessary machine in the construction of road.
Super rigid box frame ensures straight cuts while resisting warping and
vibration prolongs saw life extends blade life. Height adjustment handle
with comfortable grip handles, easy crank for raising/ lowing cutting depth.
Hinged front lift up blade guard is designed to provide easy blade replacement
easy remove, rustless poly water tank provides an optimum flow and volume of
water to the blade. It uses sheet diamond, which has the virtues of quick cutting
speed, and even cut. Meanwhile, sheet diamond could cut the steal beams in concrete.
It has simply, safety construction, easy and flexible
operations.

• Ergonomics designed handle makes the operation more comfortable and speedy
• Special protective covering protects the engine perfectly and makes the
transportation more safely
• Unique designed water tank provides adequate water supply and perfect cooling effect
• Special blade cover makes the assembling and disassembling more easier
• Folding guide wheel for accurate cutting
• Adjustable cutting depth assures the cutting working more precise and efficient

Weight : 116 Kg
Dimension (mm) : L1260 x W540 x H1035
Cutting width : 5-8 mm
Max. cutting depth : 180 mm
Disk size : 300-500 mm
Engine : Air cooled, 4 cycle, Gasoline
Type : Honda GX390 / Kohler Pro14
Max. output kw (hp) : 9.6 (13) / 10.5 (14)
Max. speed : 3600 rpm
Fuel tank : 6.5 / 7.0 liter

Model

DFS-400
Weight : 110 kg, Max. Cutting depth : 120 mm, Engine Type : Honda, Kohler

QQL-18
Weight : 118 Kg, Max. Cutting depth : 180 mm, Engine Type : Honda, Kohler

NHQ-450A
Weight : 95 Kg, Max. Cutting depth : 155, Engine Type : Honda, Kohler
